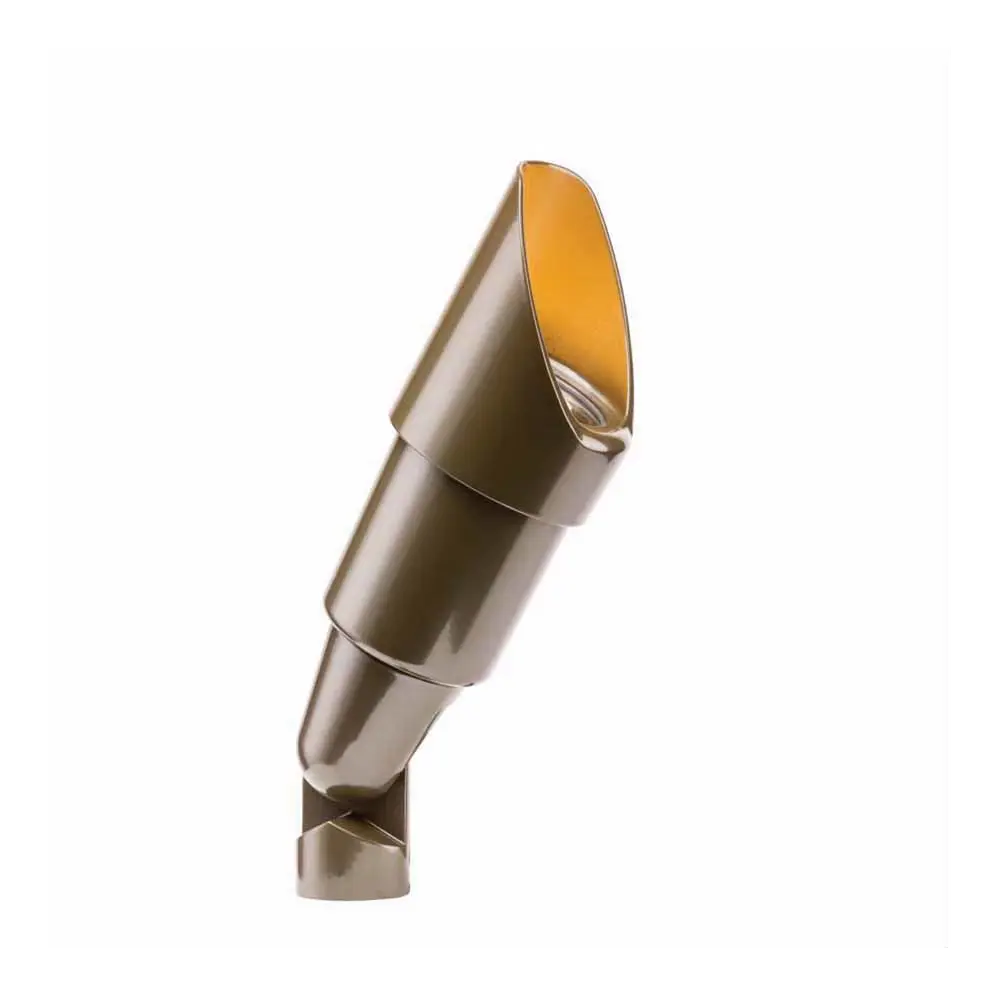

FX Luminaire RSLED20WFLBZ Lighting Fixture Luxor

FX Luminaire is an industry-leading manufacturer of landscape and architectural lighting products with a focus on the advancement of LED technology and digital lighting control with zoning, dimming, and color adjustment capabilities. We offer a full spectrum of specification-driven lighting fixtures that can be utilized to create elegant, cutting-edge landscape lighting systems for commercial or residential applications. Our products are available exclusively via our extensive professional distributor network. https://youtu.be/jNVqwkkhjSoMaterials - Zinc/aluminum alloy housing, shroud, and knuckle with stainless steel hardware. Knuckle - Machined brass knuckle with ½"-14 (13 mm) NPSM threads. Compress and lock features prevent slip after installation. Complete adjustability over 220° of vertical adjustment. Lamp - GU5.3 lamp base. Preinstalled LED MR-16 with Cree LEDs offers a warm 2,700K color temperature with a minimum rated life (L90) of 40,000 hours. Optics - Stainless steel spring in the housing ensures the lamp and additional lenses stay flush against the glass lens, optimizing output and beam angles. Recess the lamp farther inside the housing to hide additional glare with the Recessor Ring (specify separately). For additional color filters, spread lenses, hex baffles, etc., use MR-16 sized accessories (MR-16: 2" (50 mm) dia. x 1 mm thickness). Finish - Durable polyester TGIC powder coat finish, providing superior outdoor weathering in all conditions. Tested to ASTM standards. Hardware - Stainless steel angle lock screw. Includes 10" (254 mm) ABS slotted installation spike. Wiring - 18 AWG (1 mm); SPT-1W; 220°F (105°C); 300V; 10' (3 m) length. Sockets - MR16 GU5.3 socket with retaining clips. Ceramic socket base with a heat-resistant contact pad. Stainless steel retaining clips ensure high spring force retention. Power - Input 10–15 VAC/VDC, 50/60 Hz. Remote transformer required (specify separately). Shroud - Die-cast zinc/aluminum alloy shroud with 15° (standard) or 45° (long shroud) cutoff options. Weight - 2.6 lbs. (1.2 kg). Housing - Die-cast zinc/aluminum alloy housing with a capacity for one (1) standard MR-16 lamp. Lens - Tempered, low-iron, soda-lime glass lens with shock resistance and high tolerance for thermal expansion and stress. Ambient Operating Temperature - 0°F to 140°F (-18°C to 60°C). Sustainability - Innovation meets conservation in the design and manufacturing of our products. Where we can, we use recycled materials while maintaining superior functionality. Our LED products provide high- quality light at optimal energy efficiency, lifespan, and durability. Installation Requirements - Designed for installation in the upward direction only. Use waterproof, weather resistant wire connectors. Control - ZD option utilizes Luxor technology to zone light fixtures in up to 250 groups, and dim each group in 1% increments between 0 and 100%. An installed Luxor controller is required to perform these actions. Manufacturing - ISO 9001:2015 certified facility. Fixture assembled in Mexico; lamp made in China. Warranty - 10-year limited warranty on fixture; 5-year limited warranty on preinstalled FX Luminaire LED lamp.
