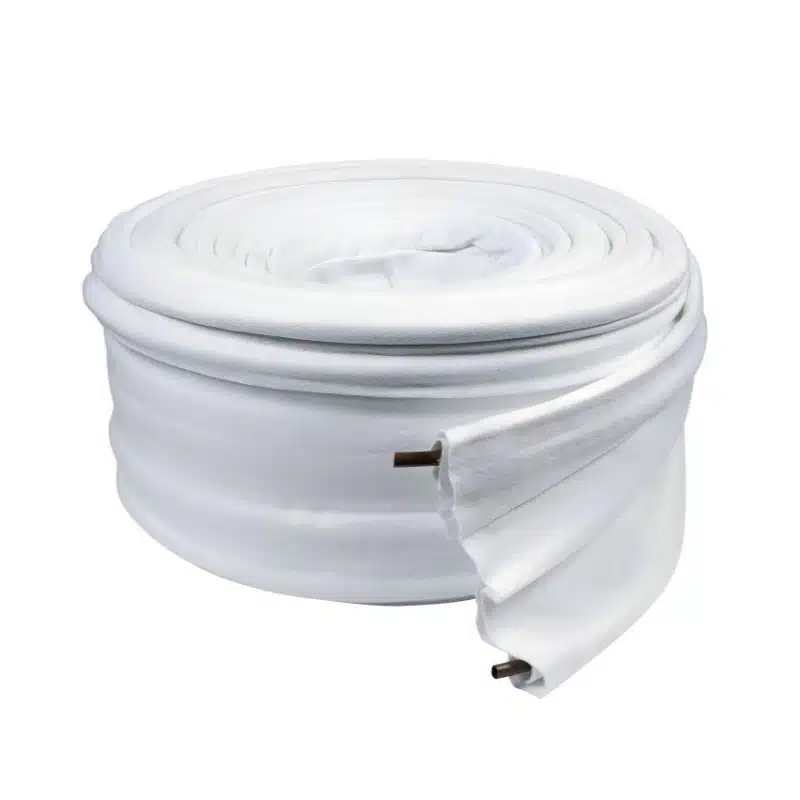

Hunter Irrigation ECOMAT17200 Sprinkler

Designed to suit a variety of hard-to-irrigate areas, the Eco-Mat uses a specifically engineered combination of inline emitter tubing and fleece, which evenly disperses water from under the surface. Eco-Mat consists of Hunter's specialized fleece-wrapped inline emitter tubing (Eco-Wrap), attached to specialized fleece. Eco-Mat is then installed in the soil to be irrigated, directly under the plant material. When water is emitted, the Eco-Wrap fills and in turn, saturates the Eco-Mat. The Eco-Mat not only makes subsurface drip a viable solution, but it also makes it a great one. Since there's never water on the surface, high-traffic turf areas in places like amusement parks, city parks, and commercial complexes can be used all day without the need to budget time for overhead irrigation or worry about vandalism.
OPERATING SPECIFICATIONS


- Operating range: 15 to 50 PSI

- Minimum filtration: 120 mesh (125 microns)

- Compatible with LOC and 17 mm insert barb fittings

- Air relief is recommended for sloping conditions greater than 6'

- Recommended installation depth: turf (4" to 6"); other (4" to 14")

- May use in conjunction with Eco-Wrap System

- Warranty period: 5 years (plus 2 additional years for environmental stress cracking)


PRODUCT SPECIFICATIONS


- Flow rate: 0.6 GPH; 0.83 in/hr

- Emitter spacing: 12"

- Lateral row spacing: 14"

- Product width: 32"

- Roll length: mini roll = 100'; standard roll = 295'

- Tubing dimensions: 0.660" x 0.560" (outside/inside diameter)

- Water-holding capacity: 0.5 gallons

The approximate coverage per roll: mini roll = 250 ft2; Standard roll = 737 ft2

Example calculation based on area 40' x 80': Roll = Irrigated landscape area = Qty. Area of roll coverage 3,200 ft2 = 4.34 (round up to 5 rolls)
